Essential details
Place of Origin: China Warranty: 1 Year After-sales Service Provided: Free spare parts, Video technical support Spare Parts Type: Fiber Laser Source Video outgoing-inspection: Provided Machinery Test Report: Provided Marketing Type: New Product 2020 Key Selling Points: Easy to Operate Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Advertising Company Weight (KG): 150 KG Central wavelength(nm): 1080±5 Maximum modulation frequency (kHz): 5 Output power stability: ±1.5% Red laser: Yes Output connector: QBH (customizable) output fiber core diameter (μm): 50 ( customizable) beam quality: 5-7 polarization state: random output fiber length (m): 20(customrizable)
|
Technical characteristics
|
High electro-optical conversion efficiency
|
Output fiber length can be customized Maintenance-free operation
|
QBH/QD connector Small size, easy to install
|
Wide modulation frequency rangeMaintenance-free operation
|
|
Optical properties
|
Average output power: (W): 1500
|
Central wavelength: (nm): 1080±5
|
Maximum modulation frequency: (kHz): 5
|
Output power stability: ±1.5% Red laser: Yes
|
|
Output characteristics
|

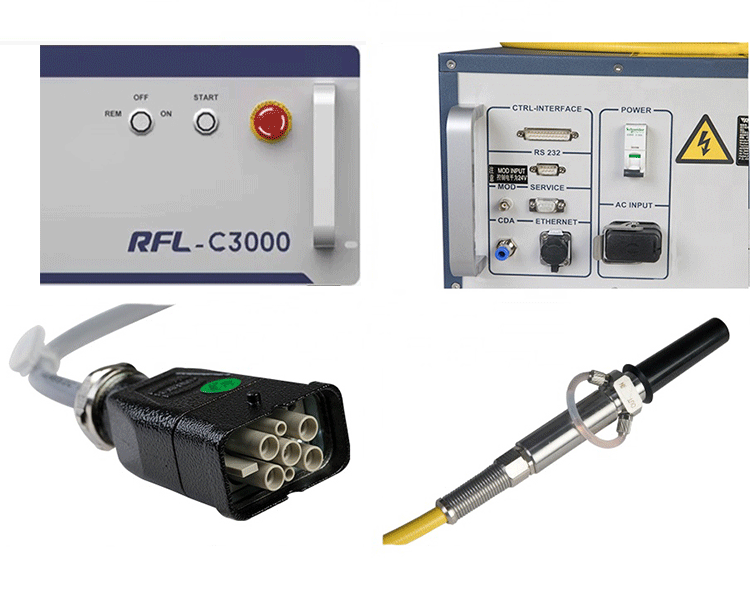

Output connector: QBH (customizable)
|
output fiber core diameter (μm): 50 (customizable)
|
beam quality:5-7 * polarization state: random
|
utput fiber length (m): 20(customizable)
|
|
Electronic control characteristics
|
Input power (V AC ): 380±10%, Three Phase-
|
Control mode: RS232, AD
|
power adjustment range (%): 10-100
|
|
|
Other characteristics
|
Dimensions (mm ): 900*447*521(handle included)
|
Weight (kg): <70
Cooling method: water cooling |
Working temperature (℃ ): 10-40
|
