Technical characteristics
High electro-optical conversion efficiency
Output fiber length can be customized Maintenance-free operation
QBH/QD connector Small size, easy to install
Wide modulation frequency rangeMaintenance-free operation
Electronic control characteristics：
Input power (V AC ): 380±10%, Three Phase- Control mode: RS232, AD
power adjustment range (%): 10-100
Warranty 1 Year.After-sales Service Provided Free spare parts, Video technical support.Spare Parts Type Fiber Laser Source.Video outgoing-inspection Provided.Machinery Test Report Provided.Marketing Type New Product 2020.Key Selling Points Easy to Operate.Showroom Location None.Applicable Industries Manufacturing Plant, Machinery Repair Shops, Food & BeverageFactory, Printing Shops, Advertising Company.Weight (KG) 150 KG.Average output power(W) 1000.Central wavelength(nm) 1080±5.Maximum modulation frequency (kHz) 5.Output power stability ±1.5%.Red laser Yes.Output connector QBH (customizable).output fiber core diameter (μm) 50 (customizable).beam quality 5-7.polarization state random.utput fiber length (m) 20(customizable).
|
Technical characteristics
|
High electro-optical conversion efficiency
|
Output fiber length can be customized Maintenance-free operation
|
QBH/QD connector Small size, easy to install
|
Wide modulation frequency rangeMaintenance-free operation
|
|
Optical properties
|
Average output power: (W): 1000
|
Central wavelength: (nm): 1080±5
|
Maximum modulation frequency: (kHz): 5
|
Output power stability: ±1.5% Red laser: Yes
|
|
Output characteristics
|
Output connector: QBH (customizable)
|
output fiber core diameter (μm): 50 (customizable)
|
beam quality:5-7 * polarization state: random
|
utput fiber length (m): 20(customizable)
|
|
Electronic control characteristics
|
Input power (V AC ): 380±10%, Three Phase-
|
Control mode: RS232, AD
|
power adjustment range (%): 10-100
|
|
|
Other characteristics
|
Dimensions (mm ): 900*447*521(handle included)
|
Weight (kg): <70

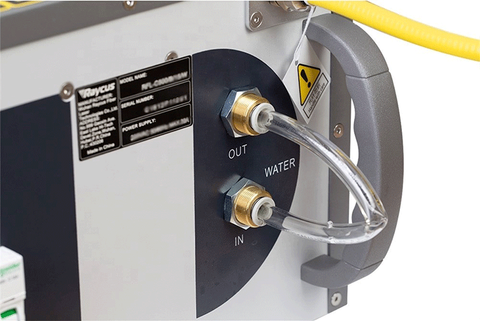

Cooling method: water cooling |
Working temperature (℃ ): 10-40
|
