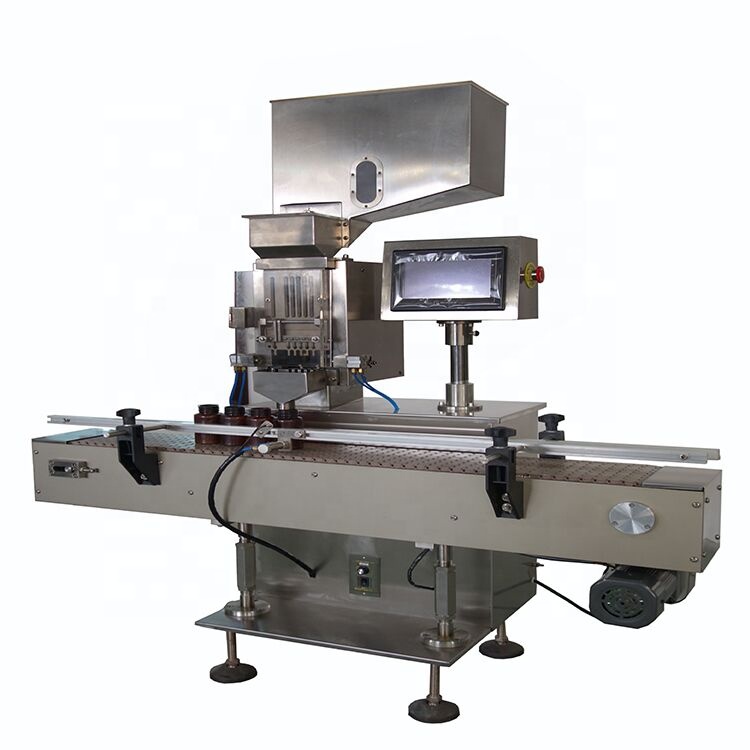

Auto Accuracy Counting Soft Gelatin Capsule Electronic Counting Machine Automatic Capsule Counter Machine 220V

Service Lncludes

7*24 hours online customer service
24/7 data analysis
Serving 218 countries around the world

Essential details

Capacity (pcs/h): 40000 pcs/h Applicable Material: capsule, pill, granule Capacity (bottle/min): 300 - 600 bottle/min Video outgoing-inspection: Provided Machinery Test Report: Provided Marketing Type: Ordinary Product Warranty of core components: 1 Year Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump Bottle Capacity (pcs/bottle): 60 - 120 pcs/bottle Condition: New Usage: Capsule Voltage: 220V Dimension(L*W*H): 120x50x140cm Weight (KG): 210 Warranty: 1 Year, 1 year Key Selling Points: High-accuracy Power (kW): 1.2 Applicable Industries: Manufacturing Plant, Food & Beverage Factory Counting speed: 400-700 pieces/minute (varied by types and sizes) Power requirement: 220V , 50HZ Bottle size: 15-500ml, dia. of bottle: 22 and 28mm, bottle height: 180mm Max Tablet Size: 12mm, round tablet is 16mm Max Capsule Size: 00# Machine Size: 120x50x140cm Capacity (bottle/hour): 300-600 Capacity (pcs/bottle): 60-120 Name: Automatic Capsule Counter Machine

(1)Vertical rail compensation count(patented technology): Capsule counting accuracy almost can reach 100%.
(2)Vertical rail compensation count(patented technology): It can quickly set any amount capsules in a bottle, and no need to change mold.
(3)Change the speed by transducer.
(4)Conveyor type transport method:can connect with accessory equipment (bottle unscrambler, cap screwing machine, etc.)
(5)Touch Screen and PLC programming control: can set various data quickly.
(6) light-operated technology: automatically check no bottles or overturning bottles with automatic alarm function, it can reduce the waste of capsules.
(7)All the mould is designed with round pin positioning, so it's convenient and efficient for users to change mould.
(8)Contacting Parts adopt 304 Stainless Steel, Conform to GMP standard.

Counting speed
400-700 pieces/minute (varied by types and sizes)
Power requirement
220V , 50HZ  ,  1P
Bottle size
15-500ml, dia. of bottle: 22 and 28mm, bottle height: 180mm
Max Tablet Size
12mm, round tablet is 16mm
Max Capsule Size
Machine Size
Air Pressure
0.03m3/min       0.7Mpa
